Organ

2014

Pipe organ, control electronics and devices to operate the organ in a non-organ like fashion.

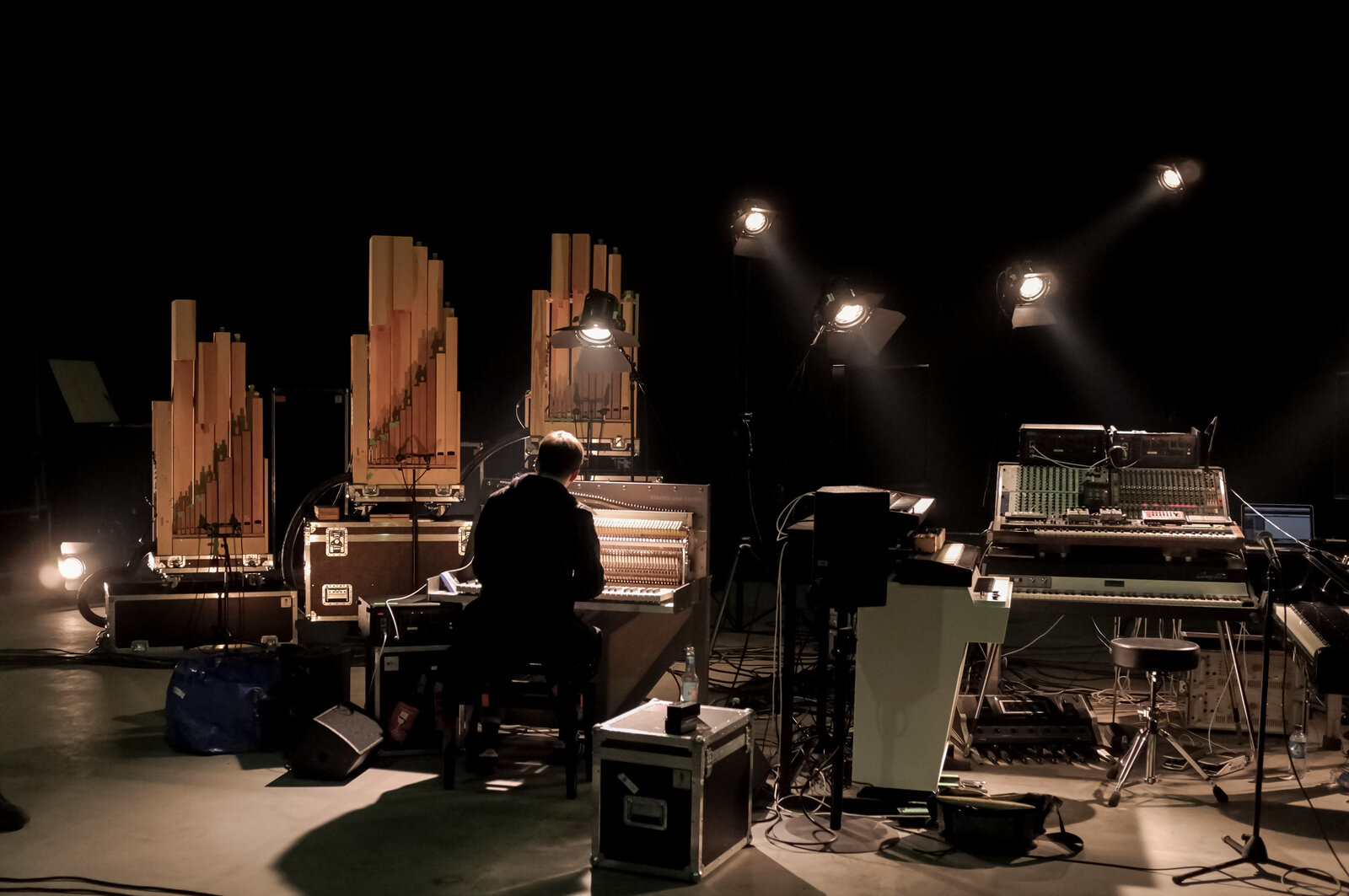

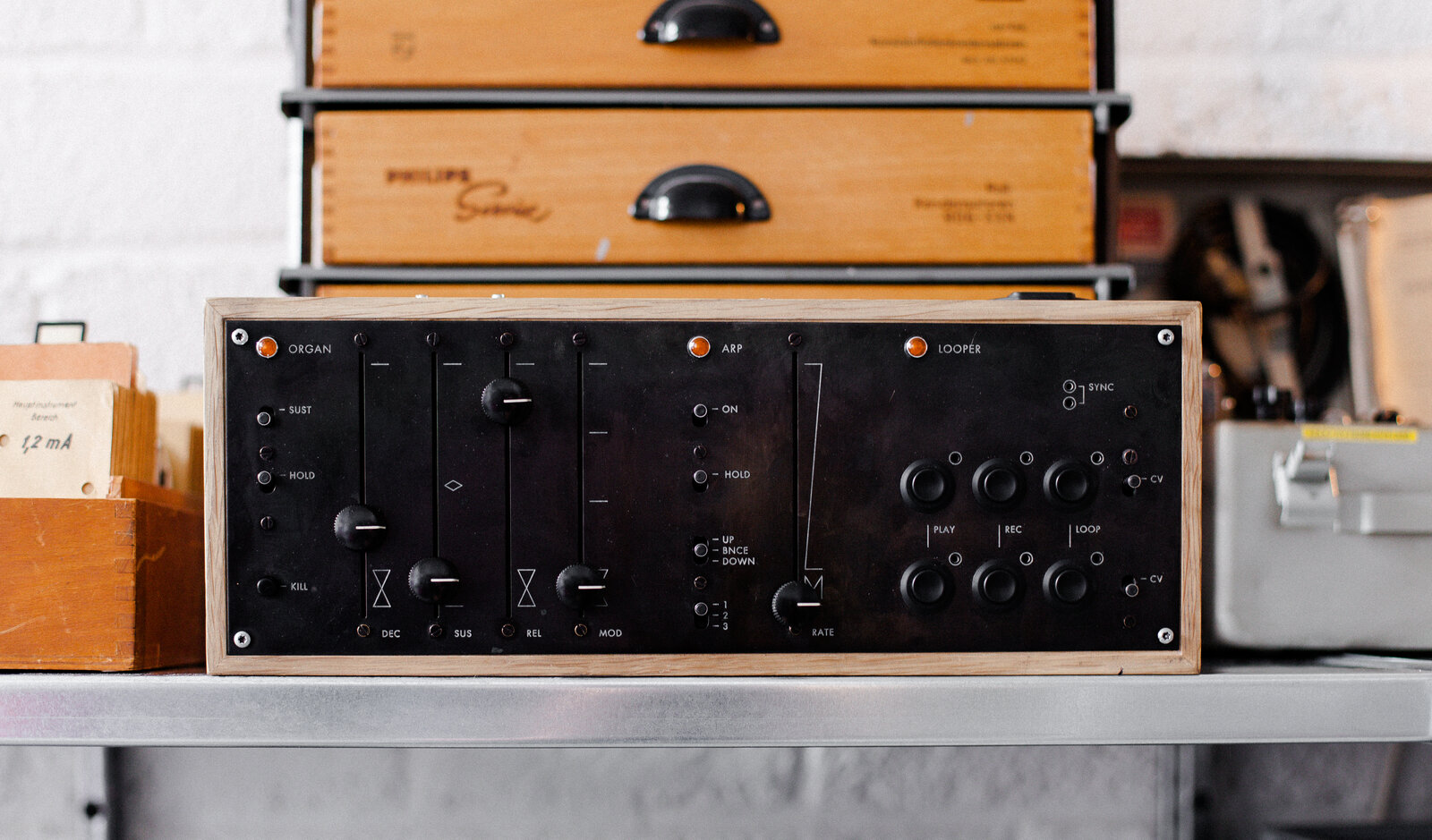

German composer and pianist Nils Frahm asked for an organ for his tour in spring 2015. The organ should be still portable enough for touring and should fit within Frahms’ elaborate stage setup, which consists of a custom upright piano, a grand piano, two synthesizers, a Mellotron, a Fender Rhodes, two tape delays, a drum machine and various effect devices. Therefor the whole layout (3 modules plus air supply) and electronics (MIDI controlled with external control interface) were developed in a unusual fashion. This made the organ very versatile and suitable for use on-stage.

The organ is controlled by multiple microcontrollers to treat it more like a synthesizer. For example the controller features classic synthesizer envelope curves and an arpeggiator. To extend the tonal characteristics of the single register organ, there are two additional “air dump” valves built into each pipe module. Those valves can be controlled with variable speed and intensity to fluctuate air pressure within the system. This results in a tremulating effect.

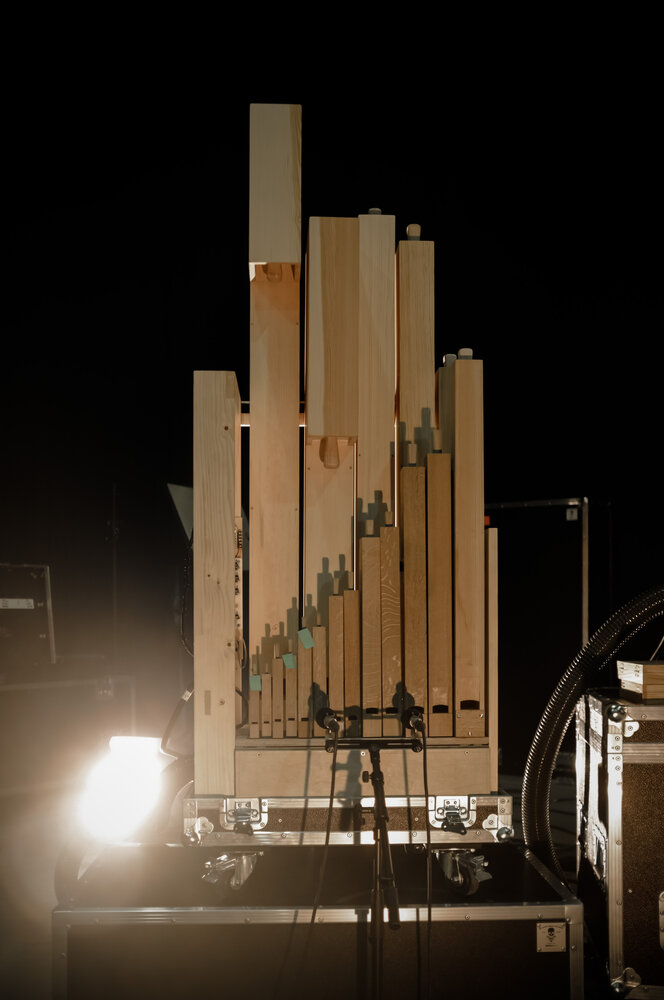

Pipe Module

Pipe Module

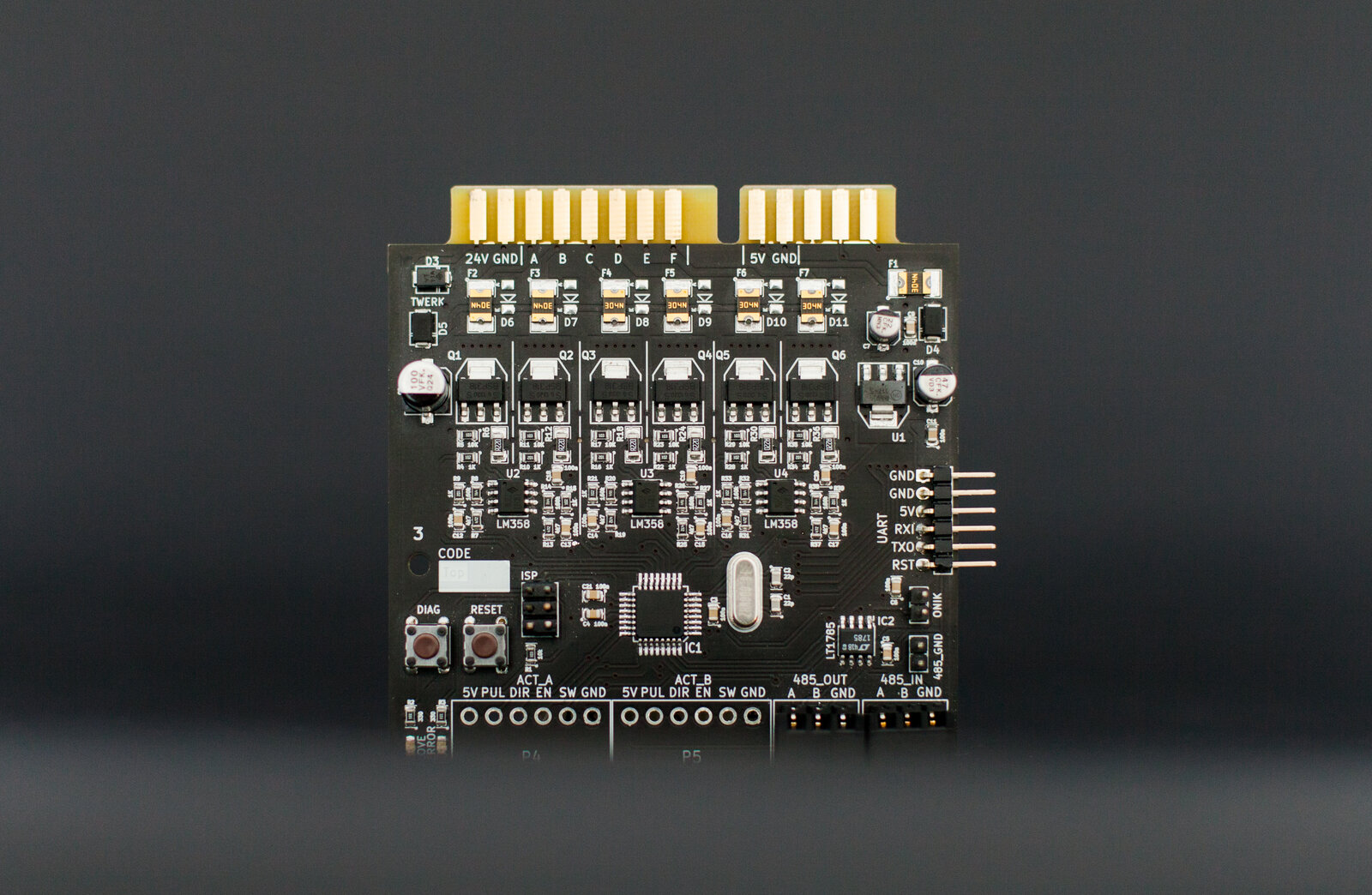

Valve Controllers

Valve Controllers

Credits

Pipes and air supply system by Peter Petersohn, Werder an der Havel

Wiring system and interface box production by Matthias H. Franz Hahn, Berlin

Additional software by Terence Goodchild, Berlin

Developed while at FELD

Stage photos by Claudia Gödke
